Short Description:

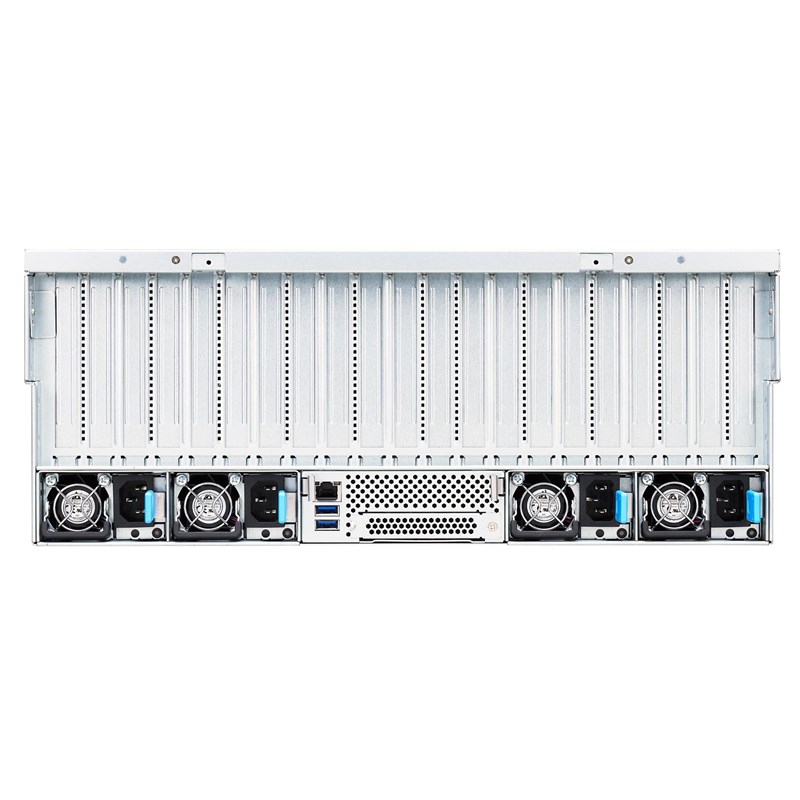

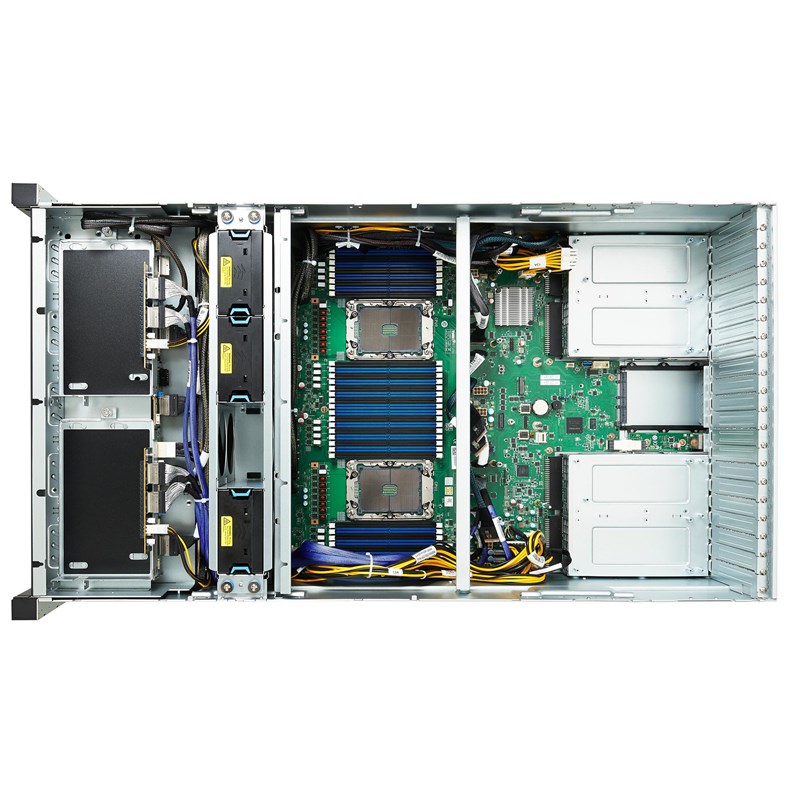

G4DI31-10ASDual Socket 4U Intel 3rd Generation Xeon Series SWITCH 8GPU Server

• Application: Large Model Training and Inference Graphics Rendering Cloud Compute Power Center Big Data Visualization Computing Structured Analysis Medical Imaging
• Processor: Supports 2 Intel 3rd Gen Xeon Scalable Processors
• CS (chipset): Intel C621A
• Memory: 32 DDR4 Memory Slots Supports 8-Channel Memory Technology Supports up to 3200 MHz Total Capacity up to 8TB
• Storage: 1 M.2 2280 PCI-E 3.0 x4 Interface on Motherboard 1 M.2 2280 PCI-E 4.0 x4 Interface on GPU Expansion Board 12 3.5-inch SATA/SAS Drive Bays (SAS support optional)4 U.2 NVMe PCI-E 4.0 x4 Drive Bays (shared with 12 bays) SATA Supports RAID 0, 1, 5, 10
• Networking: Motherboard integrates 1 Realtek RTL8211E IPMI Dedicated Network Port
• Expansion Slots: 13 PCI-E 4.0 x16 Slots (GPU Expansion Board) 2 Front PCI-E 4.0 x16 Slots (RISER Cards) 1 OCP 3.0 x16 Slot
• Power Supply: 4 x CRPS 2000W Platinum-Level Power Supply
