Short Description:

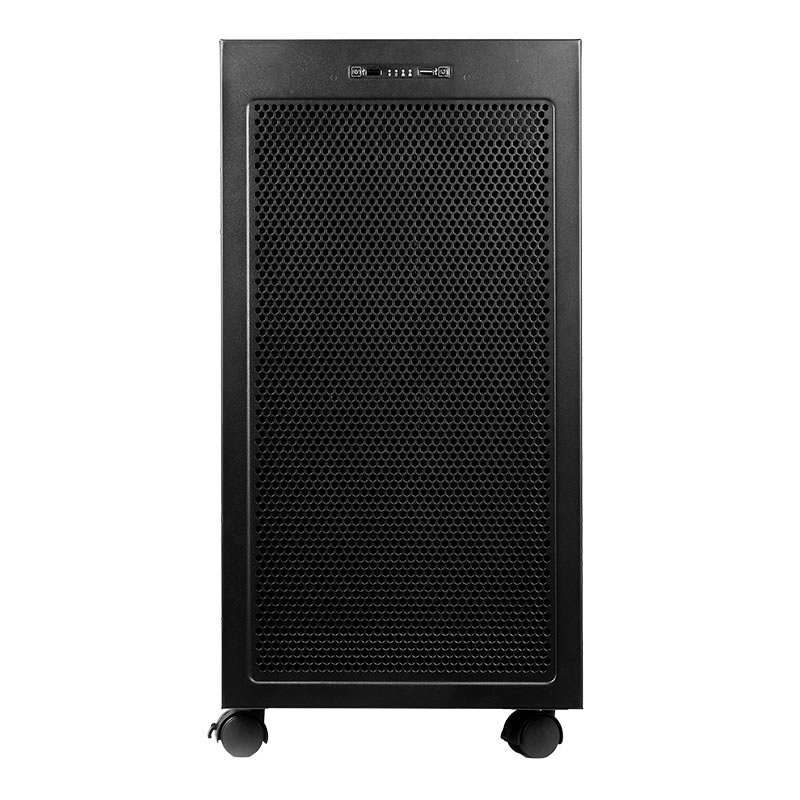

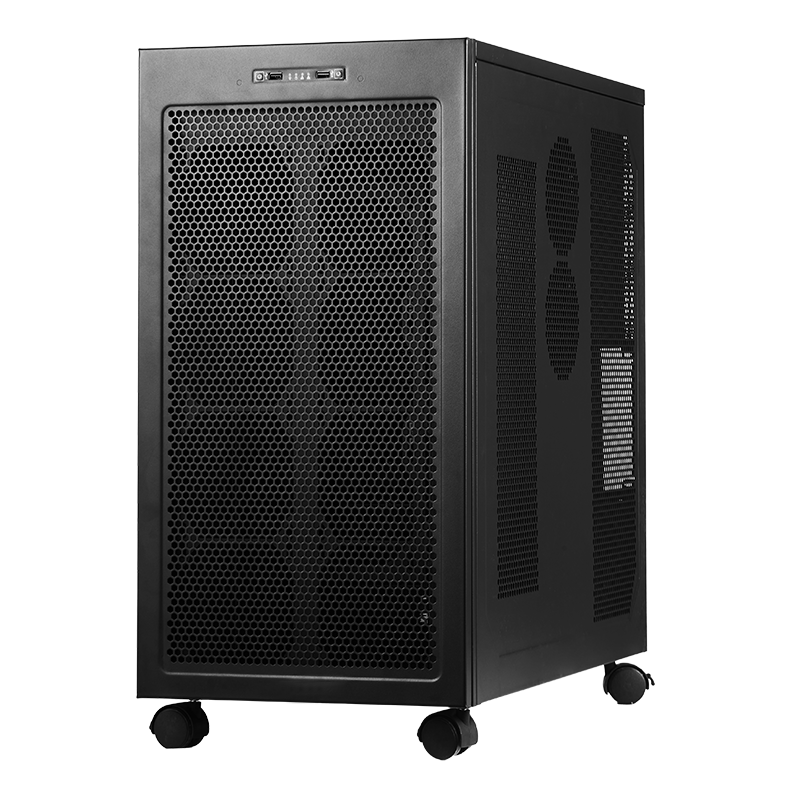

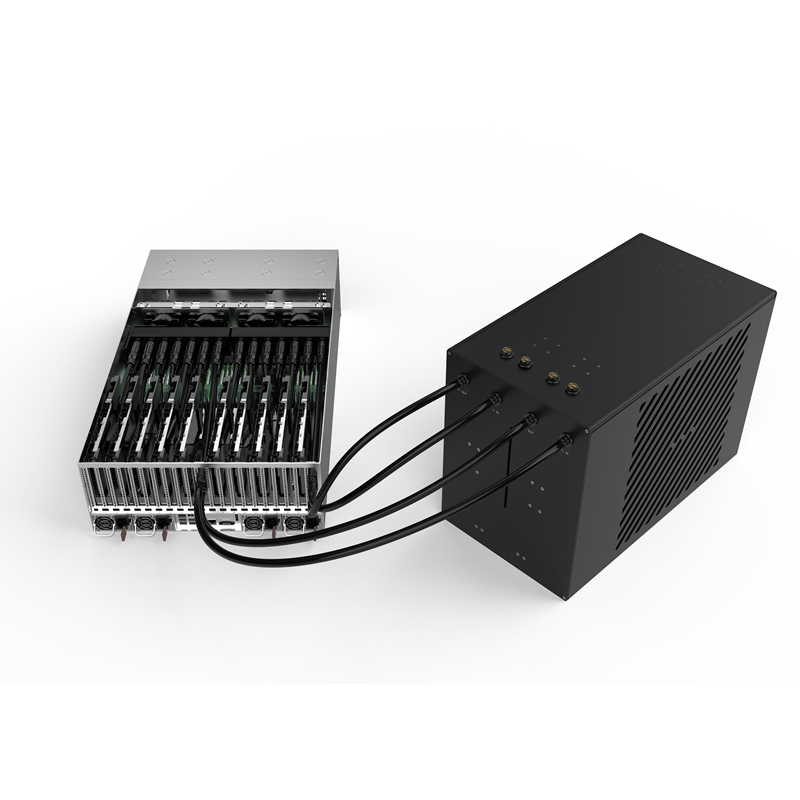

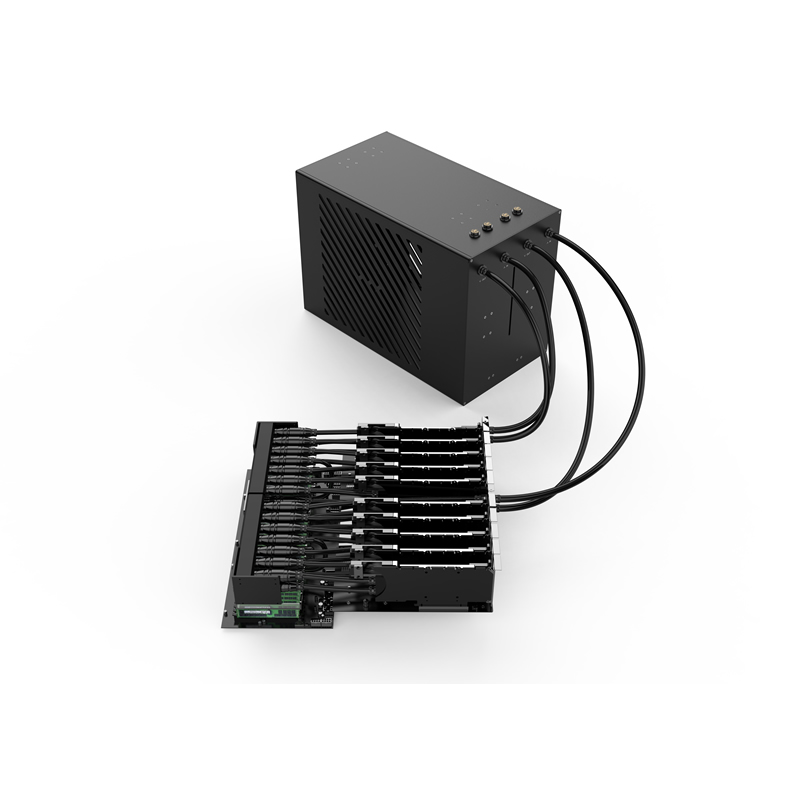

G4DI41-8LDDual Socket 4U Intel Xeon 4th/5th Gen Series Direct 8GPU Liquid-Cooled

• Application: Large Model Training and Inference Graphics Rendering Cloud Compute Power Center Big Data Visualization Computing Structured Analysis Medical Imaging
• Processor: Supports 2 Intel 4th/5th Gen Xeon Scalable Processors
• CS (chipset): Intel C741
• Memory: 32 DDR5 Memory Slots Supports 8-Channel Memory Technology Supports up to 4800 MHz Total Capacity up to 8TB
• Storage: 1 M.2 2280 PCI-E 3.0 X1/SATA Interface 12 3.5-inch SATA/SAS Drive Bays (SAS support requires optional configuration) 2 U.2 NVMe Drive Bays (Shared with 12 Bays) All Support RAID 0, 1, 5, 10
• Networking: Motherboard integrates 1 BMC Gigabit Ethernet Port Optional OCP Network Card or PCI-E Network Card
• Expansion Slots: 8 PCI-E 5.0 x16 Dual-Wide GPU Slots 3 PCI-E 5.0 x8 Slots 2 PCI-E 5.0 x16 Slots (No Signal by Default) 1 OCP 3.0 x8 Slot
• Power Supply: 4 x CRPS 2000W Platinum Level Power Supply
